Mobile Loading Dock Ramps

Mobile Loading Dock Ramps

Load capacity: 15 tons
MOQ: 1-4 sets
Production period(days): 10-15
Color: blue, green or customization
Send Inquiry
Description

product Introduction



Mobile loading dock ramps with a 15-ton capacity are heavy-duty, portable ramps designed to bridge the gap between the ground and a loading dock or truck. They are typically constructed from high-strength steel , ensuring durability and stability under heavy loads. These ramps often feature non-slip surfaces, safety curbs, and sometimes hydraulic or manual adjustment mechanisms for height adaptability.



Product Specification



Item: mobile loading dock ramps; load capacity:15 tons;

Specifications

Table size

11300-11400*2100*1100mm

Panel thickness

6mm

Grid net

8mm

Tongue board

20mm

Height adjustable range

1100-1750mm

Main girder

100*200*5mm

Auxiliary girder

60*120*4mm

guardrail

50*100 square tube

tyre

700-9 solid rubber tire

Surface treatment

shot blasting and powder coating

Support feet

hand-cranked support feet two

Unit weight

≈3.6t



Product feature and application



Key Features:

  • Load Capacity: 15 tons (30,000 lbs)
  • Material: Reinforced steel
  • Surface: Anti-slip treads or diamond plating
  • Mobility: Equipped with wheels or casters for easy repositioning
  • Safety: Side curbs, wheel chocks



Function

  • Mobile loading dock ramps facilitate the safe and efficient movement of heavy equipment, vehicles, and goods between different elevations, such as:
  • Loading/unloading trucks, containers, or trailers
  • Connecting warehouse docks to ground-level transport
  • Supporting forklifts, pallet jacks, and heavy machinery transitions
  • Temporary access solutions for construction or industrial sites
  • They eliminate the need for permanent ramp installations, offering flexibility in various material handling scenarios.



Application Scenarios



Widely used in various industries, such as logistics, manufacturing, and transportation. It provides a convenient and efficient solution for enterprises to load and unload goods, accelerates the circulation of materials, and helps enterprises obtain greater economic benefits.

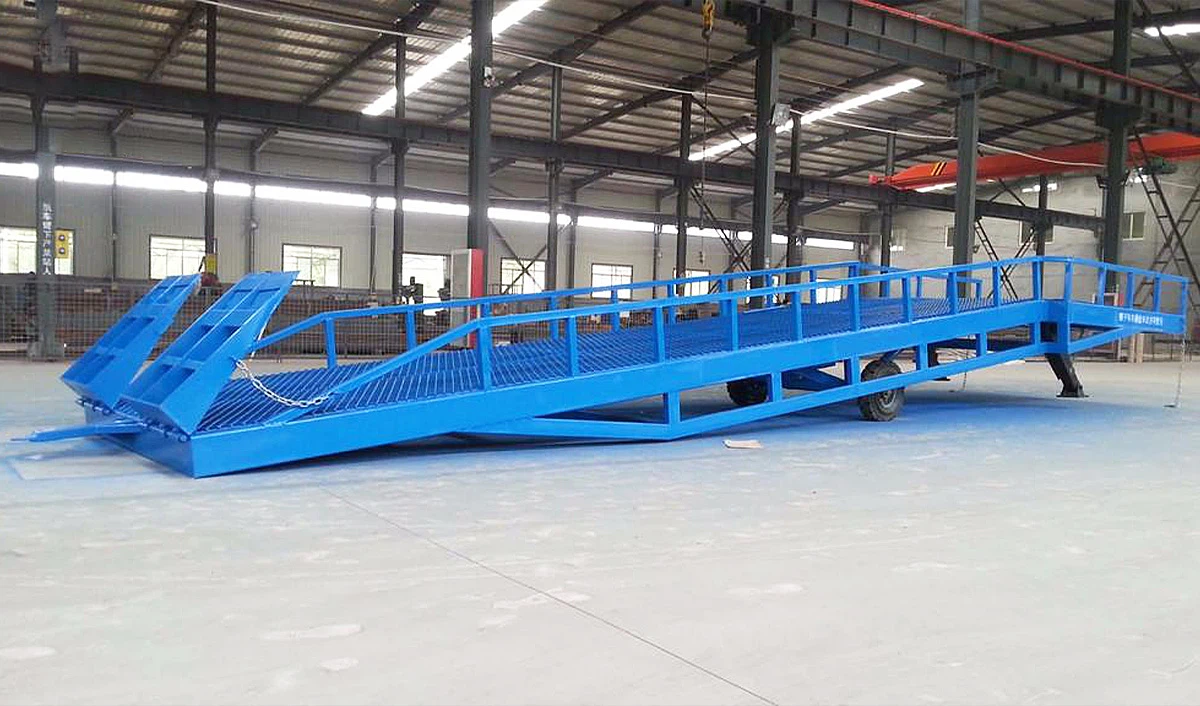

1
product-1200-706



Advantages



  • High Load Capacity – Supports up to 15 tons, making them ideal for heavy machinery and large shipments.
  • Portability & Flexibility – Wheeled design allows easy relocation between different loading areas.
  • Durability – Made from rugged steel, resistant to wear and impact.
  • Safety Features – Non-slip surfaces, safety rails
  • Cost-Effective – Eliminates the need for permanent ramp construction, reducing infrastructure costs.
  • Time-Saving – Quick setup and adjustments enhance operational efficiency.
  • Versatile Use – Suitable for warehouses, construction sites, manufacturing plants, and logistics hubs.



Product qualification



1
2
3
4
5
6
7
8
9
10
11
12
13
14



Deliver,shipping and serving



Delivershipping and serving 1



FAQ



Q: How to order?

A: Step 1, please tell us what model and quantity you need; Step 2, After, then we will make the detailed specifications and P/I for you to confirm the order details; Step 3, when we confirmed everything, you can arrange the payment; Step 4, finally arrange the delivery;

Q: Delivery time

Stock order: 15-25 days after receipt of the full payment



After-sales Service



One year warranty for all kind of products; if you find any defective accessories for the first time, please contact me any time;
